Cámara termográfica FLIR T1020

Limpiar

Consultar precio

Disponibilidad: Fabricación bajo demanda

Ref: FLIR-T1020

¿Tienes alguna duda?

Contacta con nuestro departamento técnico-comercial

Renting de Apliter

Financia tu compra desde 670 €/mes

Brand:

Descripción

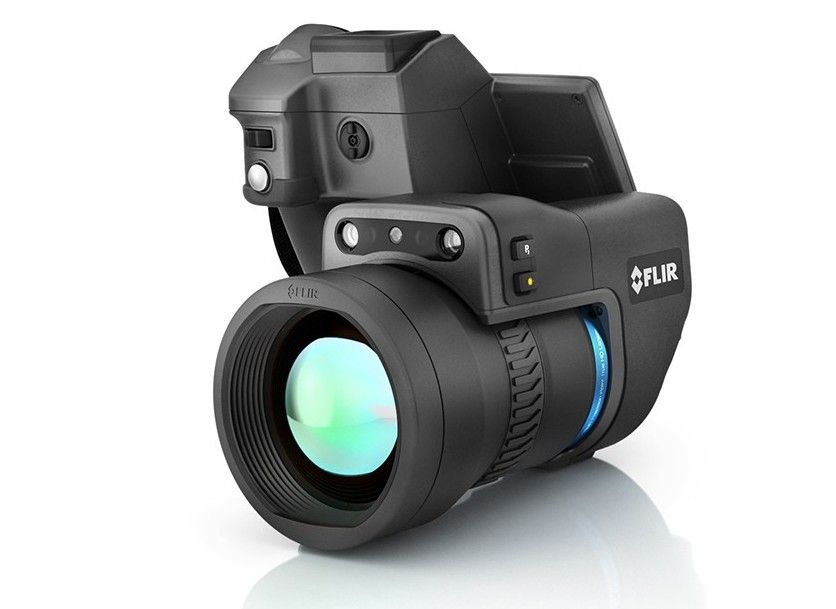

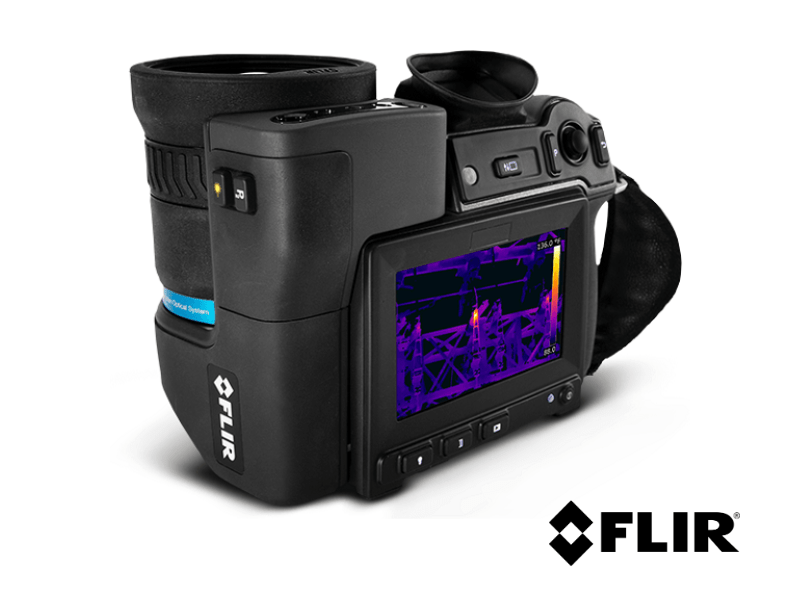

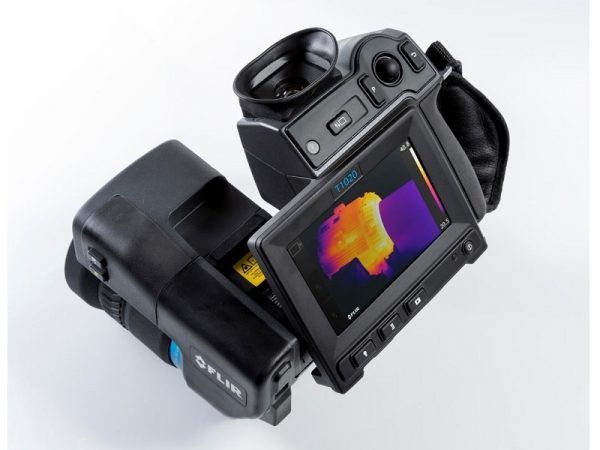

FLIR T1020, Cámara Termográfica HD

Saque el máximo partido al inmejorable rendimiento de la tecnología infrarroja apoyada en 50 años de historia. La cámara térmica FLIR T1020 está diseñada para optimizar sus inspecciones, con variedad de campos de visión y una resolución de hasta 3,1MP.

Prestaciones cámara de infrarrojos FLIR T1020

Precisión excepcional

La FLIR T1020 ofrece una inmejorable precisión de medición con cualquier objetivo.
Ópticas HDIR con precisión OSX de FLIR que le ofrecen máxima precisión a cualquier distancia y en condiciones adversas.
Enfoque automático continuo para seguir sus movimientos.
Ruta óptica de FLIR para elimina errores de fuentes de calor provenientes de fuera del campo de visión.

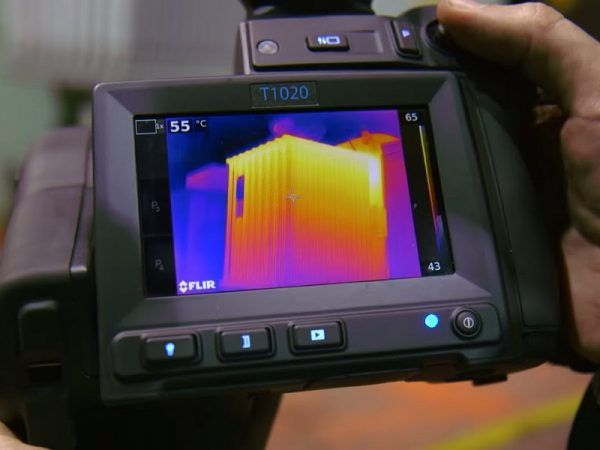

Imágenes nítidas

La inigualable sensibilidad del detector de la cámara termográfica FLIR T1020 ofrece una calidad de imagen extraordinaria.
Detector de 786.432 píxeles (1024 x 768) para proporcionarle la máxima resolución existente en cámaras portátiles FLIR.
El doble de sensibilidad existente en el sector: 20mK.
Función UltraMax para multiplicar el número de píxeles hasta los 3,1MP y que mejoran la visualización de detalles y la precisión.
Función MSX para superponer detalles visibles sobe las termografías.

Diseñada para los usuarios más exigentes

La cámara térmica FLIR T1020 dispone de una interfaz muy intuitiva que permite la creación inmediata de informes, optimizando su jornada laboral.
Botones programables para adaptar sus rutinas de inspección a sus necesidades.
Enfoque dinámico que se ajusta a su tacto y facilita la toma de termografías perfectas.
Grabación de vídeos con datos radiométricos en cada frame que permiten un posterior análisis en profundidad.
Función Rapid Report para elaboración de informes y compartir información de una manera ágil sobre el terreno.

Ref. 72501-0101, 72501-0102, 72501-0103, 72501-0104, 72501-0106, 72501-0105

FLIR T1020 - Lo último en tecnología infrarroja

FLIR T1020 - Uso fácil e intuitivo

FLIR T1020 - Flexibilidad y ergonomia

FLIR T1020 - Sistema óptico HDIR de precisión

FLIR T1020 - Resolución mejorada con UltraMax

FLIR T1020 - Imágenes dinámicas multiexpectrales MSX

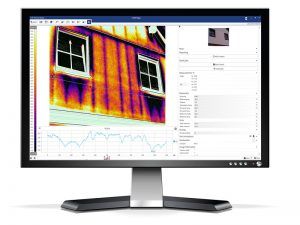

FLIR T1020 - Rapid Report & FLIR Tools+

Ficha Técnica

Imaging and optical data

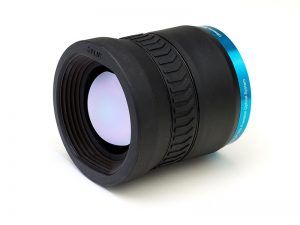

(Para lente 28º)
IR resolution
1024 × 768 pixels
MSX resolution
1024 × 768 pixels
UltraMax
Yes
Thermal sensitivity/NETD
<20 mK @ +30°C (+86°F)
Field of view (FOV)
28° × 21°
Minimum IR focus distance
0.4 m (1.32 ft.)
Minimum IR–visual alignment distance
0.4 m (1.32 ft.)
Focal length
36 mm (1.42 in.)
Spatial resolution (IFOV)
0.47 mrad
Lens identification
Automatic
F-number
1.15
Image frequency
30 Hz
Focus
One shot or manual
Digital zoom
1–8× continuous
Digital image enhancement
Adaptive digital noise reduction

Detector data

Detector type
Focal plane array (FPA), uncooled microbolometer
Spectral range
7.5–14 µm
Detector pitch
17 µm

Image presentation

Display
Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels
Display type
Capacitive touch screen
Auto orientation
Automatic landscape or portrait
Viewfinder
Built-in 800 × 480 pixels
Automatic image adjustment
Continuous, histogram based
Automatic image adjustment, type
Standard or histogram based on the image content
Manual image adjustment
Linear based, possible to adjust level/span/max./min.

Image presentation modes

Image modes
Thermal, thermal MSX, picture in picture, digital camera
Infrared image
Full color infrared image
Visual image
Full color visual image
Multi Spectral Dynamic Imaging (MSX)
Thermal image with enhanced detail presentation
Picture in Picture
Resizable and movable infrared area on the visual image
Gallery
  • Review thumbnail/full image on the camera
  • Edit measurements/palettes/image modes on the camera

Measurement

Object temperature range
Accuracy
–40 to +150°C (–40 to +302°F)
–40 to +5°C (–40 to +41°F)
±2°C (±3.6°F)
+5 to +100°C (+41 to +212°F)
±1°C (±1.8°F)
+100 to +150°C (+212 to +302°F)
±1%
0 to +650°C (+32 to +1202°F)
0 to +100°C (+32 to +212°F)
±2°C (±3.6°F)
+100 to + 650°C (+212 to +1202°F)
±2%
+300 to +2000°C (+572 to +3632°F)
+300 to +2000°C (+572 to +3632°F)
±2%
NOTE
For HSI use, above 30 Hz frame rate, the typical accuracy will be ±2.5°C (±4.5°F), or 2.5% of reading @ 25°C (77°F).
A special calibration is required for your T10xx camera to work with the HSI box. Therefore, the HSI box needs to be ordered with the camera, or when ordered separately, the special calibration can be added to the camera later on by a FLIR Service Center.

Screening mode

Sampling average mode
Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Accuracy (drift): ±0.3°C (±0.5°F)1

Measurement analysis

Spotmeter
10
Area
5 + 5 areas (boxes and circles) with max./min./average
Profile
1 line profile with max./min. temperature
Automatic hot/cold detection
Auto hot or cold spotmeter markers within the area and profile
Measurement presets
No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
User presets
The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta
Difference temperature
Delta temperature between the measurement functions and the reference temperature
Reference temperature
Manually set using the difference temperature
Atmospheric transmission correction
Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity
Optics transmission correction
Automatic, based on signals from internal sensors
Emissivity correction
Variable from 0.01 to 1.0 or selected from the materials list
Reflected apparent temperature correction
Automatic, based on the input of the reflected temperature
External optics/windows correction
Automatic, based on the inputs of the window transmission and temperature
Measurement corrections
Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation
Colors (palettes)
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Alarm

Color alarm (isotherm)
  • Above
  • Below
  • Interval
  • Condensation (moisture/humidity/dewpoint)
  • Insulation
Measurement function alarm
Audible/visual alarms (above/below) on any selected measurement function

Set-up

Set-up commands
Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information
Languages
Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish

Service functions

Camera software update
Using USB cable or SD card

Storage of images

Image storage
Standard JPEG, including digital image and measurement data, on a memory card
Storage media
Removable media SD or SDHC card. Class 10 or better recommended
Image storage mode
  • Simultaneous storage of thermal and digital images in the same JPEG file
  • Option to store a digital photo as a separate JPEG file
Time lapse
15 seconds to 24 hours
File formats
  • Standard JPEG, measurement data included
  • CSQ, measurement data included
File formats, visual
Standard JPEG, automatically associated with the corresponding thermal image

Image annotations

Voice
60 seconds (via Bluetooth) stored with the image
Text
Add table, select between predefined templates
Image description
Add short note (stored in the JPEG exif tag)
Sketch
  • Draw on the thermal/digital image or add predefined stamps
  • Separate PC software with extensive report generation
METERLiNK
Wireless connection (Bluetooth) to:
FLIR meters with METERLiNK

Geographic Information System

GPS
Location data automatically added to every image from the built-in GPS
Compass
Camera direction automatically added to every image

Video recording in camera

Radiometric IR-video recording
Real-time radiometric recording (RTRR) to the memory card
Non-radiometric IR-video recording
H.264 to the memory card
Visual video recording
H.264 to the memory card

Video streaming

Radiometric IR-video streaming
Real-time radiometric streaming (RTRS) via USB
Non-radiometric IR-video streaming
  • H.264 video using Wi-Fi
  • H.264 video using USB
Visual video streaming
  • H.264 video using Wi-Fi
  • H.264 video using USB

Digital camera

Built-in digital camera
5 Mpixel with LED light
Digital camera
Field of view adapts to the infrared lens
Video lamp
Built-in LED light

Laser pointer

Laser
Activated by a dedicated button
Laser alignment
Position is automatically displayed on the infrared image
Laser classification
Class 2
Laser type
Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)

Data communication interfaces

Interfaces
USB Micro-B, Bluetooth, Wi-Fi, HDMI
METERLiNK/Bluetooth
Communication with headset and external sensors
Wi-Fi
Infrastructure (network) or AP
SD Card
One card slot for removable SD memory cards
Audio
Microphone headset via Bluetooth for the voice annotation of images

USB

USB
USB Micro-B: data transfer/video
USB, standard
  • USB 2.0 High Speed
  • USB Micro-B connector

Video

Video out
  • HDMI 640 × 480
  • HDMI 1280 × 720
  • DVI 640 × 480
  • DVI 800 × 600
Video, connector type
HDMI type C

Radio

Wi-Fi
  • Standard: 802.11 b/g/n
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
METERLiNK/Bluetooth
Frequency range: 2402–2480 MHz, supports 2.1 and 4.0
Antenna
Internal

Power system

Battery type
Rechargeable Li ion battery
Battery operating time
>2.5 hours at 25°C (+68°F) and typical use
Charging system
In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging time
2.5 hours to 90% capacity, charging status indicated by LEDs
Charging temperature
0°C to +45°C (+32°F to +113°F), except for the Korean market: +10°C to +‎45°C (+‎50°F to +‎113°F)‎
External power operation

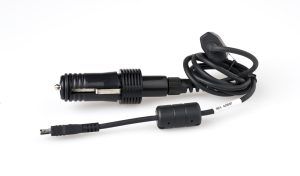

AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
Power management
Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown

Environmental data

Operating temperature range
–15°C to +50°C (+5°F to +122°F)
Storage temperature range
–40 to +70°C (–40 to +158°F)
Humidity (operating and storage)
IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
Radio spectrum
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
Encapsulation
IP 54 (IEC 60529)
Shock
25 g (IEC 60068-2-29)
Vibration
2 g (IEC 60068-2-6)
Safety
EN/UL/CSA/PSE 60950-1
Ergonomics
The viewfinder plus the 120° rotating optical block allow you to point the camera in multiple directions while maintaining a comfortable position

Physical data

Weight
1.9 kg (4.3 lb.)
Camera size, excl. lens (L × W × H)
167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.)
Tripod mounting
UNC ¼»-20
Housing material
Magnesium

Warranty information

Warranty
  • 2 years parts and labor coverage on the camera
  • 5 years coverage on the battery
  • 10 years coverage on the detector – the most vital part of the whole camera

Shipping information

List of contents
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger

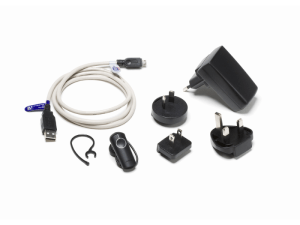

  • Bluetooth headset
  • Calibration certificate
  • FLIR Thermal Studio Pro license card (1 year subscription)
  • Hard transport case
  • HDMI-HDMI cable
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, including multi-plugs
  • Printed documentation
  • USB cable, Std A to Micro-B
EAN-13
7332558010280
UPC-12
845188010928
Country of origin
Sweden

Contenido de la caja

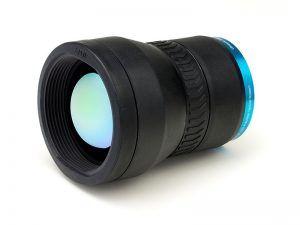

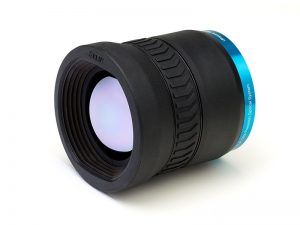

  • Cámara termográfica FLIR T1020 con lente de 12º, 28º y/o 45º
  • Tapa de lente

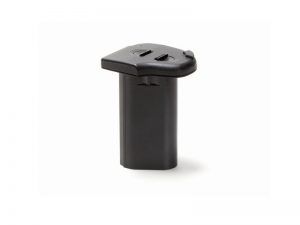

  • 2 baterías

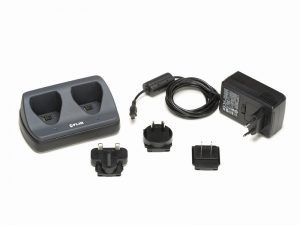

  • Cargador de baterías de 2 puertos

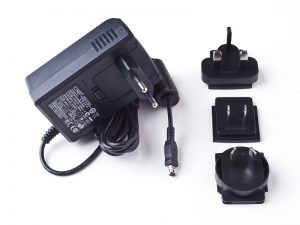

  • Fuente de alimentación
  • Caja de transporte rígida
  • Correa de cuello
  • Tarjeta de memoria
  • Micrófono bluetooth
  • Cable USB
  • Cable HDMI-HDMI
  • Certificado de calibración
  • Licencia software FLIR Thermal Studio Pro (subscripción 1 año)
  • Documentación impresa
